Operating Supply Current ::	600 uA	Ib - Input Bias Current ::	500 fA
Mounting Style ::	SMD/SMT	Minimum Operating Temperature ::	- 40 C
SR - Slew Rate ::	1.4 V/us	Supply Voltage - Max ::	5.5 V
Package / Case ::	SC-70-5	Maximum Operating Temperature ::	+ 125 C
Supply Voltage - Min ::	2.7 V	Packaging ::	Reel
Output Current per Channel ::	18 mA	Product Category ::	Precision Amplifiers
en - Input Voltage Noise Density ::	12 nV/sqrt Hz at 5 V	Series ::	LMV771
GBP - Gain Bandwidth Product ::	3.5 MHz	Number of Channels ::	1 Channel
Vos - Input Offset Voltage ::	850 uV	Manufacturer ::	Texas instruments
Shutdown ::	No Shutdown	CMRR - Common Mode Rejection Ratio ::	80 dB to 90 dB

Operating Supply Current ::	600 uA
Ib - Input Bias Current ::	500 fA
Mounting Style ::	SMD/SMT
Minimum Operating Temperature ::	- 40 C
SR - Slew Rate ::	1.4 V/us
Supply Voltage - Max ::	5.5 V
Package / Case ::	SC-70-5
Maximum Operating Temperature ::	+ 125 C
Supply Voltage - Min ::	2.7 V
Packaging ::	Reel
Output Current per Channel ::	18 mA
Product Category ::	Precision Amplifiers
en - Input Voltage Noise Density ::	12 nV/sqrt Hz at 5 V
Series ::	LMV771
GBP - Gain Bandwidth Product ::	3.5 MHz
Number of Channels ::	1 Channel
Vos - Input Offset Voltage ::	850 uV
Manufacturer ::	Texas instruments
Shutdown ::	No Shutdown
CMRR - Common Mode Rejection Ratio ::	80 dB to 90 dB

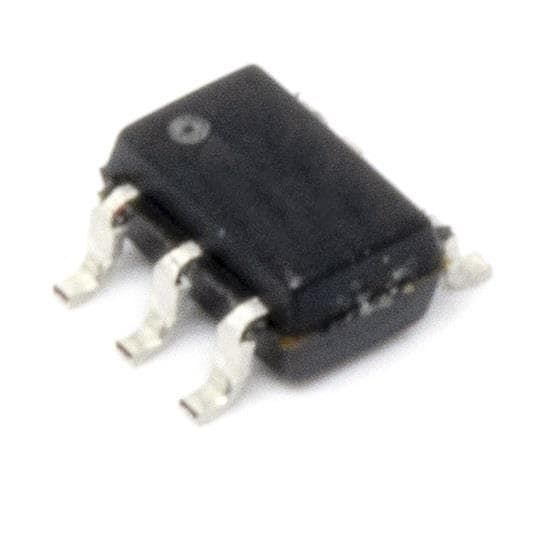

LMV771MGX/NOPB

De LMV771MGX/NOPB,van Texas instrumenten,is Precision Versterker. Wat we aanbieden hebben een concurrerende prijs in de wereldmarkt,die zijn in originele en nieuwe onderdelen.Als u meer wilt weten over de producten of een lagere prijs wenst, neem contact met ons op via de online chat of stuur ons een offerte!
